| HARDWARE FEATURES |
| Standards and Protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z, |
| IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s, |
| IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p |

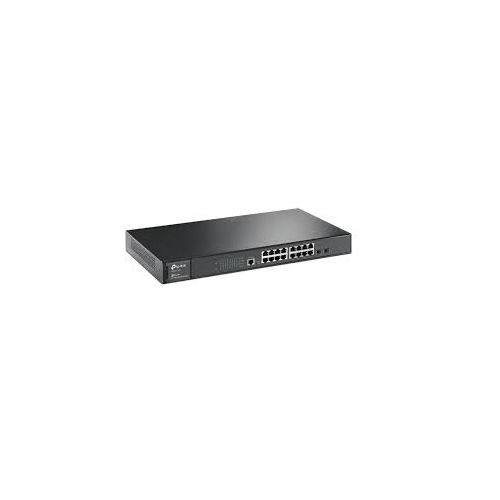

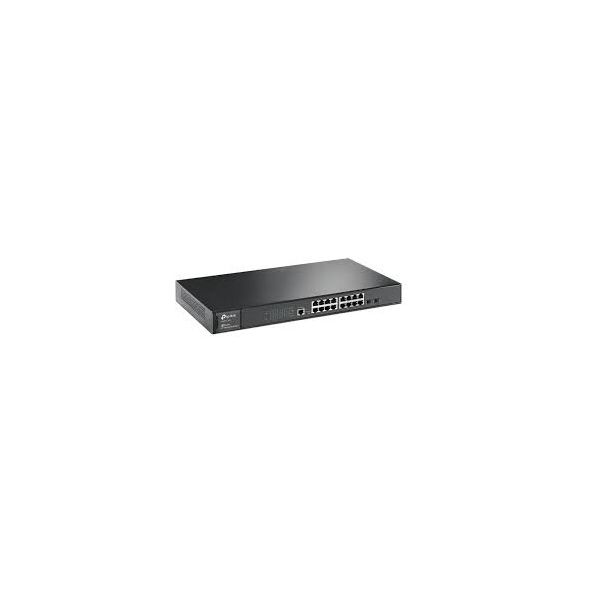

| Interface | 16 10/100/1000Mbps RJ45 Ports |
| (Auto Negotiation/Auto MDI/MDIX) |
| 2 Combo 100/1000Mbps SFP Slots |
| 1 Console Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable |
| (maximum 100m) |
| 100BASE-FX:MMF,SMF |
| 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60Hz |
| Power Consumption | Maximum: 14.7W (220V/50Hz) |
| Dimensions ( W x D x H ) | 17.3*8.7*1.7 in.(440*220*44 mm) |
| Mounting | Rack Mountable |
| PERFORMANCE |
| Bandwidth/Backplane | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 512KB |
| Jumbo Frame | 10240 Bytes |
| SOFTWARE FEATURES |
| Quality of Service | Support 802.1p CoS/DSCP priority |
| Support 4 priority queues |
| Queue scheduling: SP, WRR, SP+WRR |
| Port/Flow- based Rate Limiting |
| Voice VLAN |
| L2 Features | IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 8 aggregation groups, |
| containing 8 ports per group) |
| Spanning Tree STP/RSTP/MSTP |
| BPDU Filtering/Guard |
| TC/Root Protect |
| Loop back detection |
| 802.3x Flow Control |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
| Port/ MAC/Protocol-based VLAN |
| GARP/GVRP |
| Access Control List | L2～L4 package filtering based on source and destination |
| MAC address, IP address, TCP/UDP ports, 802.1p, |
| DSCP, protocol and VLAN ID |
| Time Range Based |
| Security | IP-MAC-Port-VID Binding |
| IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN |
| DoS Defence |
| Dynamic ARP inspection (DAI) |
| SSH v1/v2 |
| SSL v2/v3/TLSv1 |
| Port Security |
| Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 | Dual IPv4/IPv6 stack |
| Multicast Listener Discovery (MLD) Snooping |
| IPv6 neighbor discovery (ND) |
| Path maximum transmission unit (MTU) discovery |
| Internet Control Message Protocol (ICMP) version 6 |
| TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client |
| Ping6 |
| Tracert6 |
| Telnet(v6) |
| IPv6 SNMP |
| IPv6 SSH |
| IPv6 SSL |
| Http/Https |
| IPv6 TFTP |
| Management | Web-based GUI and CLI management |
| SNMP v1/v2c/v3,compatible with public MIBs and |
| TP-LINK private MIBs |
| RMON (1, 2, 3, 9 groups) |
| DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 |
| CPU Monitoring |
| Port Mirroring |
| Time Setting: SNTP |
| Integrated NDP/NTDP feature |
| Firmware Upgrade: TFTP & Web |
| System Diagnose: VCT |
| SYSLOG & Public MIBS |
| OTHERS |
| Certification | FCC, RoHS |
| Package Contents | Switch; |
| Power Cord; |
| Quick Installation Guide; |
| Resource CD; |
| Rackmount Kit; |
| Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| Warranty | Limited Lifetime |
