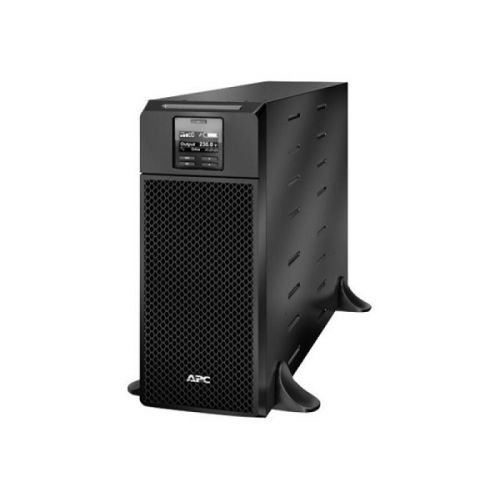

APC Smart-UPS SRT 6000VA/6KWatt 230V (SRT6KXLI)

ราคาปกติ : 135,900 บาท

ราคาพิเศษ : 131,580 บาท
( Excluded Vat. )

ไม่มีคะแนนสะสมสำหรับสินค้านี้เพราะมีส่วนลดแล้ว

สั่งซื้อสินค้า กรุณาติดต่อฝ่ายขาย

APC Smart-UPS SRT 6000VA/6KWatt 230V (SRT6KXLI) ทำให้ใหญ่สุด

Output

  • Output power capacity
    6.0 KWatts / 6.0 kVA
  • Max Configurable Power (Watts)
    6.0 KWatts / 6.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Distortion
    Less than 2%
  • Output Frequency (sync to mains)
    50/60Hz +/- 3 Hz
  • Other Output Voltages
    220, 240
  • Load Crest Factor
    3 : 1
  • Topology
    Double Conversion Online
  • Waveform type
    Sine wave
  • Output Connections
    (4) IEC 320 C19 (Battery Backup)
    (6) IEC 320 C13 (Battery Backup)
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
  • Bypass
    Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    40 - 70 Hz (auto sensing)
  • Input Connections
    Hard Wire 3 wire (1PH+N+G)
  • Input voltage range for main operations
    160 - 275V
  • Input voltage adjustable range for mains operation
    100 - 275 (half load)V
  • Other Input Voltages
    220, 240

Batteries & Runtime

Communications & Management

  • Interface Port(s)
    RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO)
    Yes
  • Available SmartSlot™ Interface Quantity
    1

Surge Protection and Filtering

  • Surge energy rating
    480Joules

Physical

  • Maximum Height
    432mm , 43.2cm
  • Maximum Width
    174mm , 17.4cm
  • Maximum Depth
    719mm , 71.94cm
  • Net Weight
    60.0kg
  • Shipping weight
    67.0kg
  • Shipping Height
    370mm , 37.0cm
  • Shipping Width
    610mm , 61.0cm
  • Shipping Depth
    960mm , 96.0cm
  • Color
    Black
  • Units per Pallet
    6.0

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95% non-condensing %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95% non-condensing %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    55.0dBA
  • Online thermal dissipation
    1300.0BTU/hr
  • Protection Class
    IP 20

Conformance

Warranty 2 Yrs. Onsite  + Install
