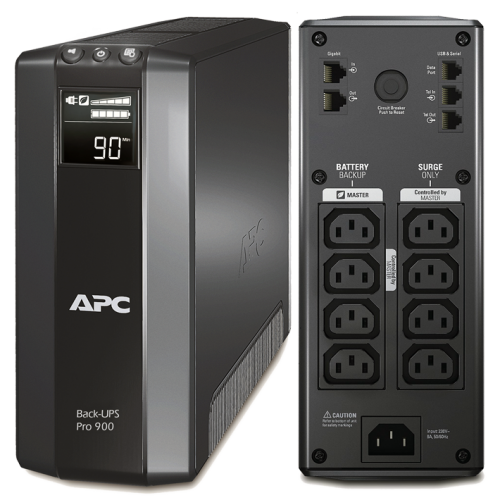

APC Back-UPS Pro 900VA/540W (BR900GI)

APC Back-UPS,700 Watts / 1400 VA with AVR, Universal Outlets , Input 230V / Output 230V , Interface Port USB

รายละเอียดเพิ่มเติม

ราคาปกติ : 6,990 บาท

ราคาพิเศษ : 6,220 บาท
( Excluded Vat. )

ไม่มีคะแนนสะสมสำหรับสินค้านี้เพราะมีส่วนลดแล้ว

สั่งซื้อสินค้า กรุณาติดต่อฝ่ายขาย

APC Power-Saving Back-UPS Pro 900VA/540W(BR900GI) ทำให้ใหญ่สุด

Output

Output Power Capacity
540 Watts / 900 VA
Max Configurable Power
540 Watts / 900 VA
Nominal Output Voltage
230V
Efficiency at Full Load
98.6%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
3 : 1
Topology
Line Interactive
Waveform Type
Stepped approximation to a sinewave
Output Connections
(4) IEC 320 C13 (Battery Backup)IEC 320 C13
(4) IEC 320 C13 (Surge Protection)IEC 320 C13
(2) IEC Jumpers (Battery Backup)
Efficiency at Half Load
97.6%
Bypass
Built-in Bypass

Input

Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
176 - 294V
Input voltage adjustable range for mains operation
156 - 300V
Maximum Input Current
8A
Input Breaker Capacity
10.0  A

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8 hour(s)
Replacement Battery
RBC™ Quantity
1
Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.

Communications & Management

Interface Port(s)
Optional Simple Signalling RS232 cable, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
613 Joules
Filtering
Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height
250.00 mm
Maximum Width
100.00 mm
Maximum Depth
382.00 mm
Net Weight
10.72 KG
Shipping Weight
11.70 KG
Shipping Height
337.00 mm
Shipping Width
225.00 mm
Shipping Depth
487.00 mm
Master Carton Units
1.00
Color
Black
SCC Codes
1073130427959 1
Units per Pallet
32.00
Pallet Dimensions
46 inches
Pallet Weight
393.28 KG

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-2952.6 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-14763.6 meters
Audible noise at 1 meter from surface of unit
45.00 dBA

Conformance

Regulatory Approvals
A-tick, C-tick, CE, GS Mark
Standard Warranty
2 years repair or replace, 3 years repair or replace for European Union countries

APC Back-UPS Pro 900VA/540W (BR900GI)
Topology Line Interactive
Output Power Capacity 540 Watts / 900 VA
Nominal Output Voltage 230V
Nominal Input Voltage 230V
Typical recharge time 8 hour(s)
Output Connections (4) IEC 320 C13 (Battery Backup) , (4) IEC 320 C13 (Surge Protection) , (2) IEC Jumpers (Battery Backup)
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Weight 10.72 KG
Warranty Carry in 3Y
