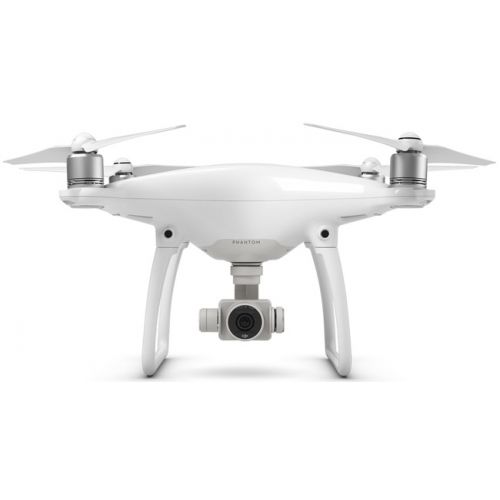

DJI Drone Phantom4-Adv

ราคาปกติ : 53,458 บาท

ราคาพิเศษ : 47,800 บาท
( Excluded Vat. )

ไม่มีคะแนนสะสมสำหรับสินค้านี้เพราะมีส่วนลดแล้ว

สั่งซื้อสินค้า กรุณาติดต่อฝ่ายขาย

DJI Drone Phantom4 ทำให้ใหญ่สุด



AIRCRAFT

Weight (Battery & Propellers Included)1368 g
Diagonal Size (Propellers Excluded)350 mm
Max Ascent SpeedS-mode: 6 m/s
P-mode:5 m/s
Max Descent SpeedS-mode:4 m/s
P-mode:3 m/s
Max SpeedS-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt AngleS-mode:42°
A-mode:35°
P-mode:25°
Max Angular SpeedS-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level19685 feet (6000 m)
Max Wind Speed Resistance10 m/s
Max Flight TimeApprox. 30 minutes
Operating Temperature Range32° to 104°F (0° to 40°C)
Satellite Positioning SystemsGPS/GLONASS
Hover Accuracy RangeVertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)

VISION SYSTEM

Vision SystemForward Vision System
Downward Vision System
Velocity Range≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range0 - 33 feet (0 - 10 m)
Operating Range0 - 33 feet (0 - 10 m)
Obstacle Sensory Range2 - 98 feet (0.7 - 30 m)
FOVForward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring FrequencyForward: 10 Hz
Downward: 20 Hz
Operating EnvironmentSurface with clear pattern and adequate lighting (lux>15)

REMOTE CONTROLLER

Operating Frequency2.400 - 2.483 GHz
Max Transmission Distance2.400 - 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
Operating Temperature Range32° to 104°F (0° to 40°C)
Battery6000 mAh LiPo 2S
Transmitter Power (EIRP)2.400 - 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
MIC: 17 dBm
Operating Current/Voltage1.2 A@7.4 V
Video Output PortGL300E: HDMI
GL300C: USB
Mobile Device HolderGL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM+16 GB ROM)
GL300C: Tablets and smart phones

INTELLIGENT FLIGHT BATTERY

Capacity5870 mAh
Voltage15.2 V
Battery TypeLiPo 4S
Energy89.2 Wh
Net Weight468 g
Charging Temperature Range41° to 104°F (5° to 40°C)
Max Charging Power100 W
hdmi

GIMBAL

Stabilization3-axis (pitch, roll, yaw)
Controllable RangePitch: -90° to +30°
Max Controllable Angular SpeedPitch: 90°/s
Angular Control Accuracy±0.02°

CAMERA

Sensor1’’ CMOS
Effective pixels: 20M
LensFOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞
ISO RangeVideo:
100 - 3200 (Auto)
100 - 6400 (Manual)
Photo:
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed8 - 1/2000 s
Electronic Shutter Speed8 - 1/8000 s
Image Size3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size4096×2160(4096×2160 24/25/30/48/50p)
3840×2160(3840×2160 24/25/30/48/50/60p)
2720×1530(2720×1530 24/25/30/48/50/60p)
1920×1080(1920×1080 24/25/30/48/50/60/120p)
1280×720(1280×720 24/25/30/48/50/60/120p)
Still Photography ModesSingle Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording ModesH.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps

H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate100 Mbps
Supported File SystemsFAT32 (≤32 GB); exFAT (>32 GB)
PhotoJPEG, DNG (RAW), JPEG + DNG
VideoMP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD CardsMicro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range32° to 104°F (0° to 40°C)

CHARGER

Voltage17.5V
Rated Power100 W

APP / LIVE VIEW

Mobile AppDJI GO 4
Live View Working Frequency2.4 GHz ISM
Live View Quality720P @ 30fps
LatencyPhantom 4 Advanced: 220 ms (depending on conditions and mobile device)
Phantom 4 Advanced +:160 - 180 ms
Required Operating SystemsiOS 9.0 or later
Android 4.4.0 or later
